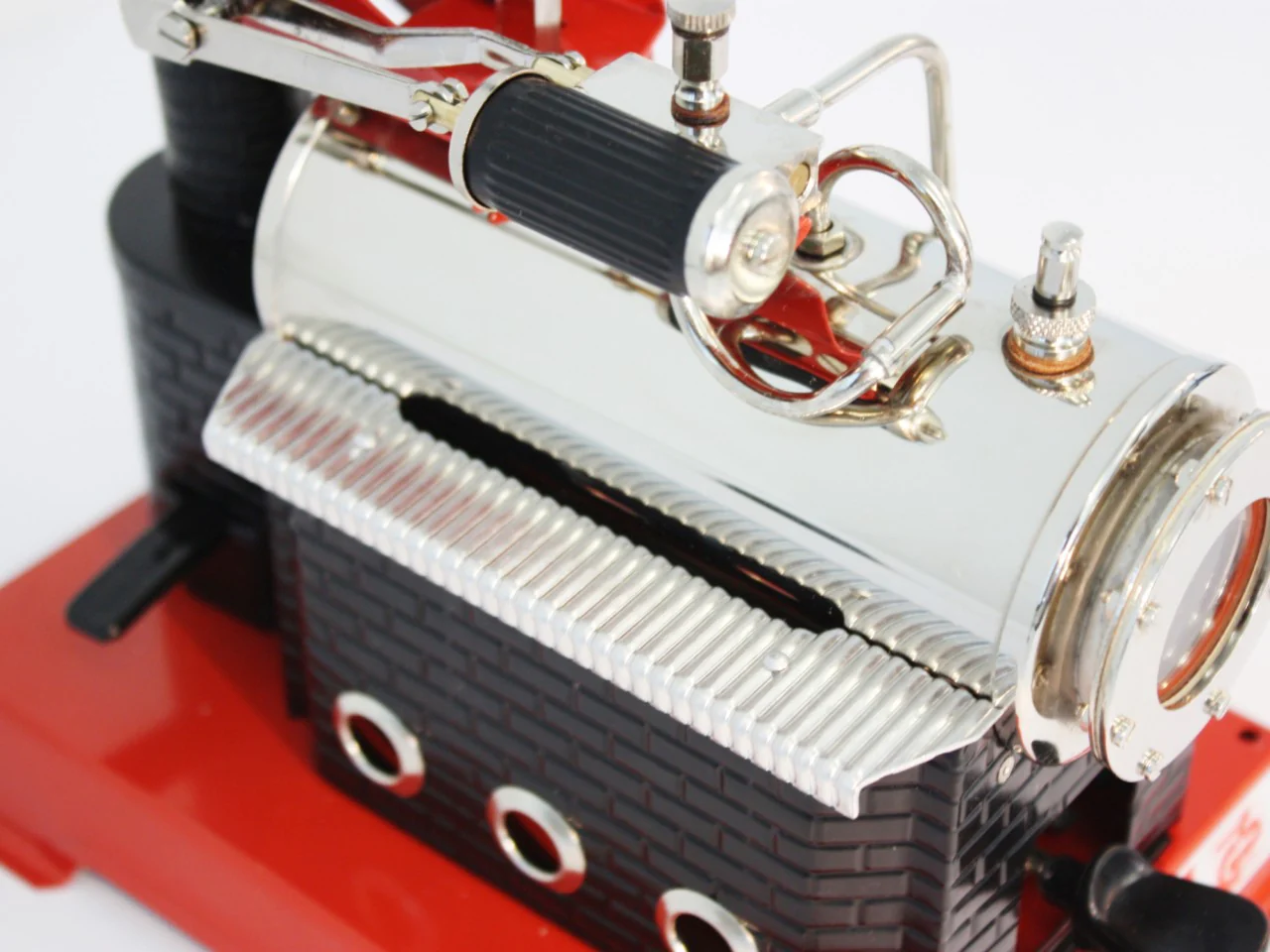

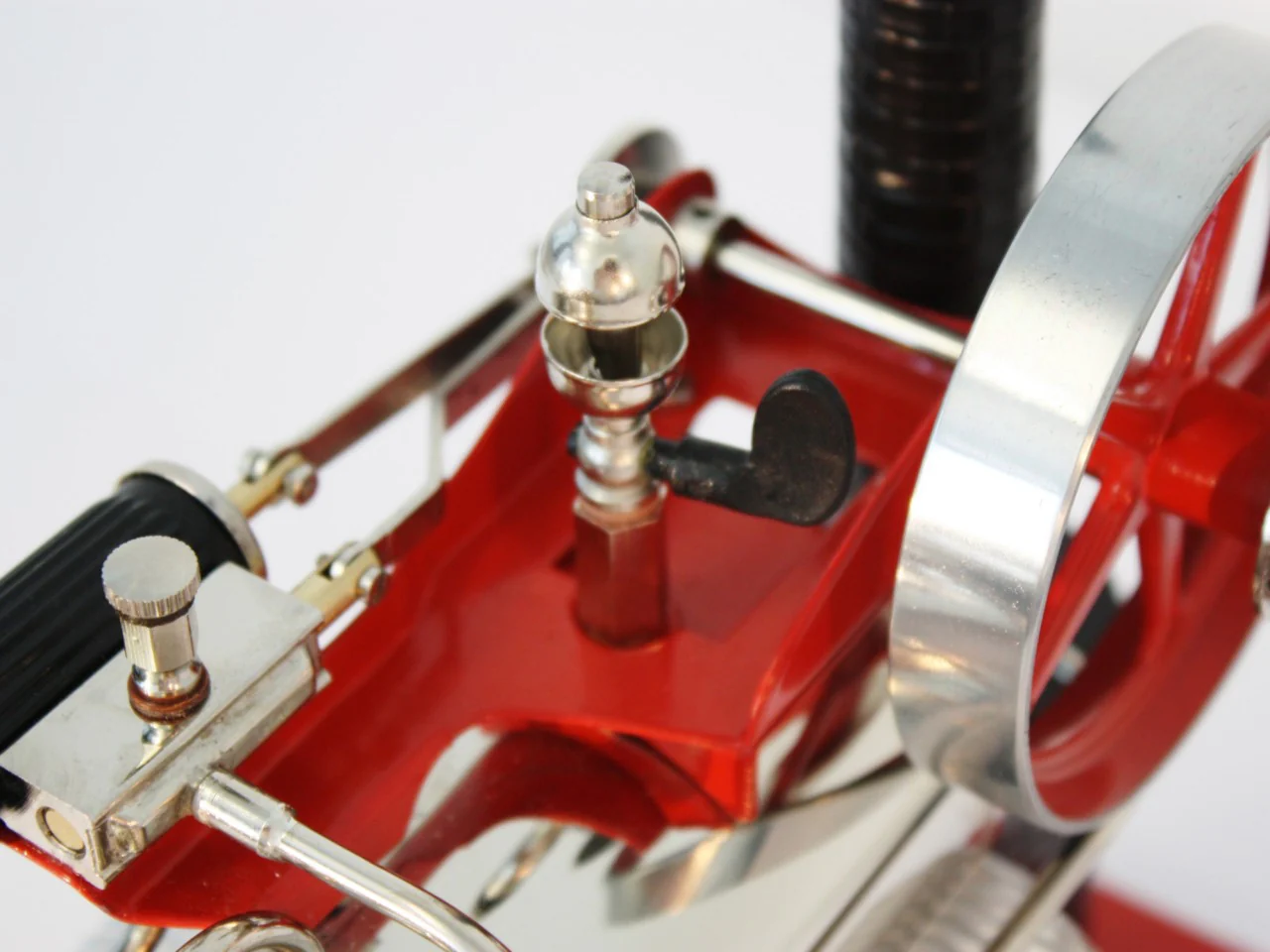

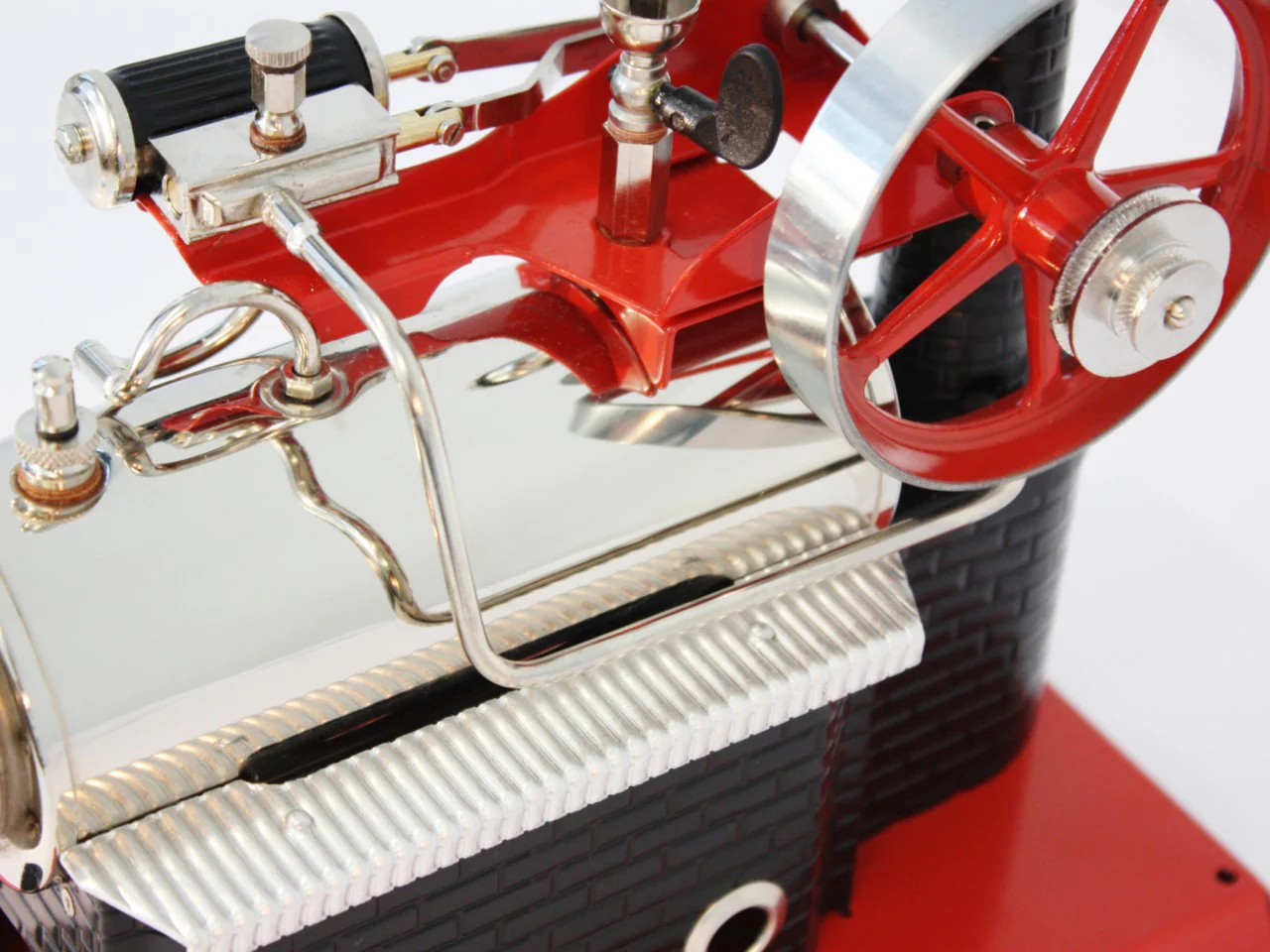

The Wilesco D14 is a space-saving, overtype live steam engine.

The 140 x 55 mm boiler with 250 cm³ volume and the heavy flywheel with 80 mm diameter makes this a particularly powerful engine for its size. The boiler is fitted with a dome whistle.

Features

• Boiler length: 115 mm, Ø 45 mm
• Steam shut-off valve and steam lubricator
• Realistic smoking from chimney
• Overtype engine which is compact and easy to use

• Baseplate is drilled ready for mounting on a wooden board
• Made in Germany, GS marked by TÜV Nord

Specification

Boiler Capacity	250cc
Fuel	Wilesco Fuel Gel
Runtime	Approx. 10-15 minutes
Wilesco Power Output Rating	9 - What does this mean?
Kit or Preassembled?	Preassembled
Drive (mobile only)	N/A
Colour Scheme	Red/Black/Nickel
Weight	1.0 kg
Flywheel Diameter	80mm
Pressure release valve?	Yes
Whistle?	Yes
Pressure gauge?	No
Water sight glass?	Yes
Dummy Governor?	No
Number of Cylinders	One (double-acting)

Included in the box…

1x D14 live steam model steam engine, 1x water funnel, 1x sachet of steam oil, 1x Burner tray suitable for gel, 1x Wilesco Fuel Gel 100ml, manual for safe operation (English included).

This product is a detailed live steam model for adult collectors. Not suitable for children under 14 years.
